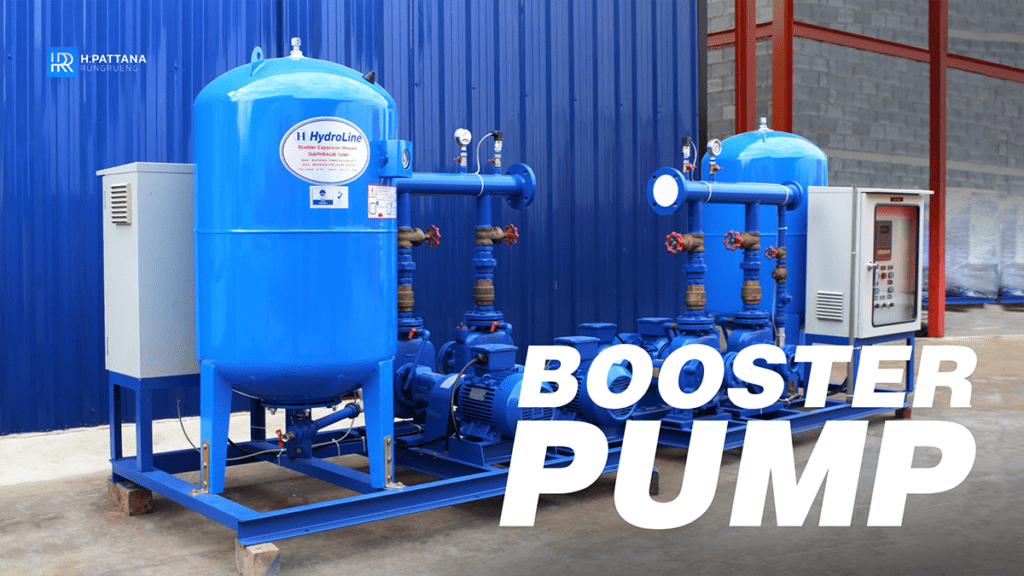

Working principle of Booster Pump that you should know and understand which this article P’Tank has gathered information about booster pumps for you to study and understand.
Booster Pump is a water pump to control and maintain the pressure in the system so that the water pressure in the system is not lower than the specified limit, with the pressure switch controlling the operation wen the pressure in the system is lower than the set point, pressure switch No.1 (high pressure) connects the circuit to start water pump number 1 will work until the pressure increases to the point where we set pressure Switch No.1 to the stop point thus stopping the operation of the water pump and next time when the pressure drops the second water pump will be the one that works first.
In the case that only one pump number 1 or 2 is working but there is a lot of water used the pressure in the system will decrease to the start point of pressure switch no.2 (low pressure) the empty pump will work to help, working simultaneously when the pressure increases to the stop point of pressure switch no.2 water pump the one that works later will stop first, and once it reaches the stop point of pressure switch No.1, another one will stop.
If you want the pump to stop at the same time In the case where 2 pumps are working, connect the Jumper cable to the Terminal. The system will order the pumps to stop working at the same time. By referring to the Stop point of Pressure Switch No.1.
